15 Watt 48 Inch T8 LED Battery Backup ; 35K/40K/50K CCT Selectable; Ballast Bypass

Satco|Nuvo's T8 lamps with Battery Backup are the logical choice for commercial installations. Providing up to 90-minutes of illumination in the event of a power failure, these lamps are ideal for use where backup lighting is essential. Available in 15W and 17W options, both are designed to replace our most popular T8 and T12 fluorescent lamps, with the 17W model offering the option of higher lumen output. These new lamps have Increased safety and energy efficiency while reducing maintenance costs. This T8 is an easy-to-install fluorescent alternative.

Provides up to 90 minutes of illumination during power outages
Battery On/Off switch conserves battery after installation
Integrated aluminum heatsink to promote heat dissipation

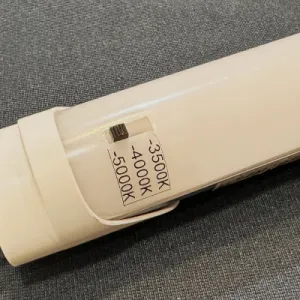

Features ColorQuick technology, allowing for easy selection of CCT at installation
5 Year Warranty

Watts	15W
Incandescent Equivalent	75W
Fluorescent Equivalent	32W
Volts	120V-277V
Ballast Type	Type B
Shape	T8
Base	Medium Bi Pin
ANSI Base	G13
Nominal Length	48
Finish	White
CCT (Kelvin)	3500K/4000K/5000K
CRI	83
Lumens	1850L/2000L/1900L
Beam Spread	140
Hours Rated	50000
Product Category	Linear
Lamp Type	Linear
Technology	LED

Electrical

Watts	15W
Incandescent Equivalent	75W
Fluorescent Equivalent	32W
Volts	120V-277V
Ballasting Requirements	Ballast Bypass
Ballast Type	Type B
Operating Frequency	60Hz
CCT (Kelvin)	3500K/4000K/5000K
CRI	83
Lumens	1850L/2000L/1900L
Beam Spread	140
Power Factor	0.9
Hours Rated	50000
THD	<25%
Operating Temperature	-20C (-4F) to +45C (+113F)

Physical

MOL	47.78
MOD	1.13
Nominal Length	48
Shape	T8
Base	Medium Bi Pin
ANSI Base	G13
Finish	White
Material	Aluminum
Lens Finish	Frost
Lens Material	Polycarbonate (PC)
Housing Color	White
Weight (lb.)	0.99

Additional Information

Additional Info	3.5 Watts and 500 Lumens in Emergency Mode
Shatter-Proof Type	Yes
Tube Guard Use	No
Installation Notes	Not for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet
Specification Note	Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - T8 LED Bulbs - Ballast Bypass

Compliance

Safety Listing	cULus - Classified; cETLus - Listed; cRUus - Recognized Component
Location Rating	Damp
Energy Star	No
DLC Approved	Yes
DLC ID	S-U53N8J
CA T20 / T24 Rationale	Exempt - Base Not Regulated
RoHS Compliant	Yes
FCC Compliant	Yes
NSF Approved	Yes
SDS Sheet	LED Lamp

Packaging

Each UPC	045923117305
Each Quantity	1
Each Length (in.)	48.11
Each Width (in.)	2.05
