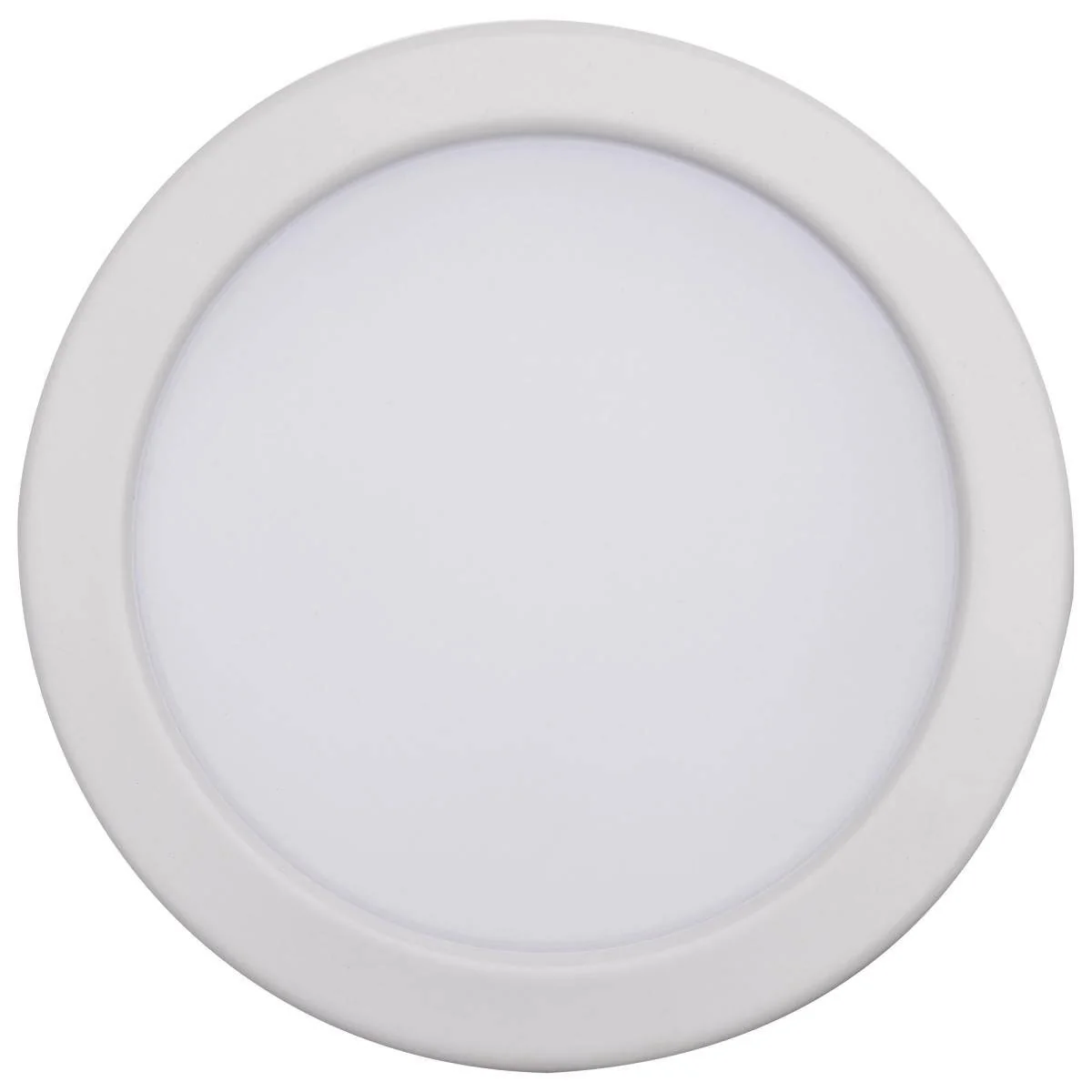

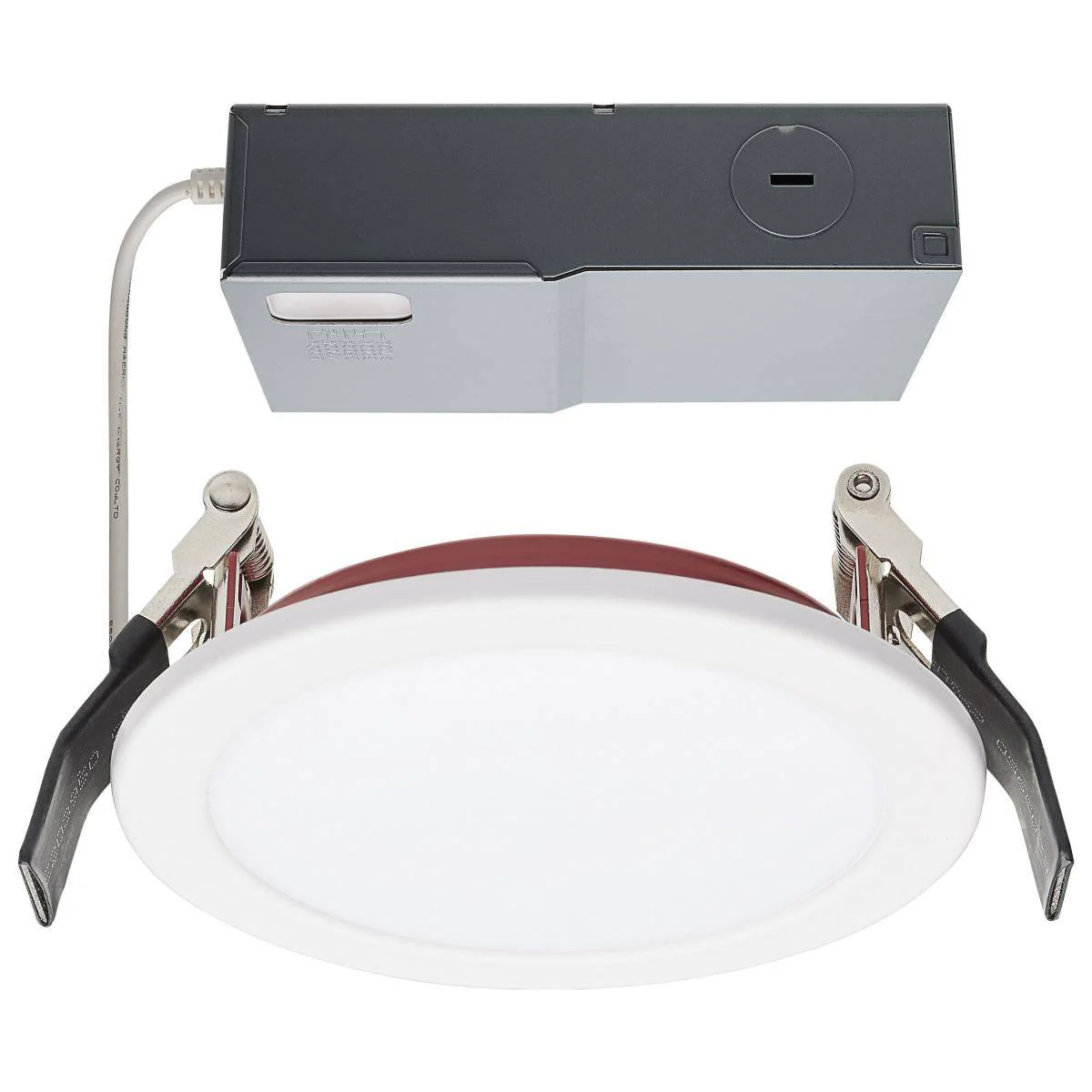

Fire Rated 4 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable

SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace of mind in residential, multi-family, and commercial applications.

Fire rated up to 2-hours
Red painted backplate for easy identification
5 CCT Selectable
90 CRI
Wet location rated
Dimmable
IC Rated
AT Rated

Wattage	10W
Voltage	120V
Finish	White and Red
CCT (Kelvin)	2700K/3000K/3500K/4000K/5000K
Color Temperature	Warm White to Natural Light
Lumen Output	800L
Indoor or Outdoor Fixture	Indoor

Specifications

Technology	LED
Wattage	10W
Lumen Output	800L
CCT (Kelvin)	2700K/3000K/3500K/4000K/5000K
Color Temperature	Warm White to Natural Light
CRI	90
Voltage	120V
Beam Angle	110
Rated Hours	50000
Operating Temperature	-20C (-4F) to +40C (+104F)
Dimmable	Yes-Dimmable
Sloped Ceiling	No

Dimensions

Width (in.)	4.75
Height (in.)	0.69
Weight (lb.)	1.02

Compliance

Safety Listing	cULus - Certified
Location Rating	Wet
UL Application	LED Recessed Luminaire
Energy Star	Yes
ES Unique ID	ESID-2473552
DLC Approved	No
NSF Approved	No
Air Tight Rated	Yes
IC Rated	Yes
CA T20 / T24 Rationale	California T24 2016 - 2022 JA8 Listed
Title 20 / 24 Status	California T24 Listed
California Prop 65	Lead
RoHS Compliant	Yes
FCC Compliant	Yes
SDS Sheet	LED Lamp

Additional Information

Additional Information	2-Hour Fire Rated; White Trim/Red Backplate
Specification Note	Driver Dimensions: 4.50" x 3.00" x 1.25"
Warranty	5 Year Limited - Fixtures

Packaging

Each UPC	045923118647
Each Quantity	1
Each Length (in.)	5.83
Each Width (in.)	2.68
Each Height (in.)	5.43
