4 in. White Gimbal LED Recessed Downlight, CCT

The DCG Recessed LED Gimbal Downlight Series provides an economical and straightforward solution for transitioning from traditional incandescent lighting to a durable, energy-efficient LED system. Its user-friendly twist-and-turn mechanism ensures precise gimbal positioning, offering up to 350° of rotation and 30° of adjustable tilt for the 4” version and up to 354° of rotation and 30° of adjustable tilt for the 6” model, making it a versatile solution for sloped ceilings and wall wash applications. With its sleek, flush-mounted design, the DCG not only delivers exceptional functionality but also enhances the aesthetic appeal of any interior space.

Specifications

• Input voltage 120VAC
• Dimmable to less than 5% with recommended TRIAC dimmers
• Operating temperature of 0° to 104°F (-18°C to 40°C)
• TM-21 Reported L70(10K) hours = 56,000
• LM-79, LM-80 testing performed in accordance with IESNA standards
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emission

Optical System
• Polystyrene diffuser creates uniform light distribution with reduced glare

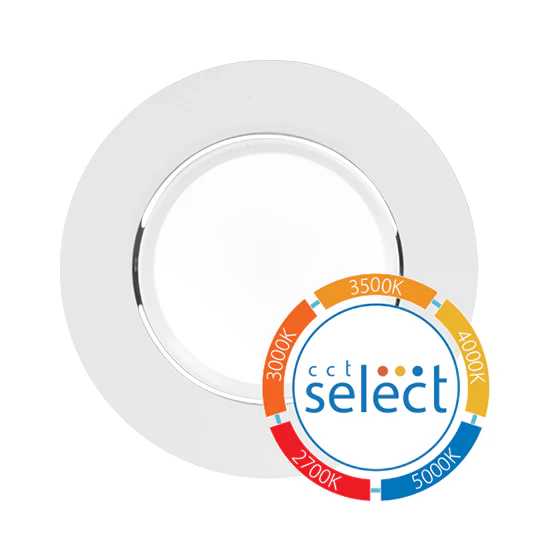

• Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
• Beam angle of 90°
• Utilizes high performing LEDs with 90+ CRI and an R9 > 50
Electrical
• Input voltage 120VAC, 60Hz
• Power factor: ≥0.97
• THD ≤ 20%

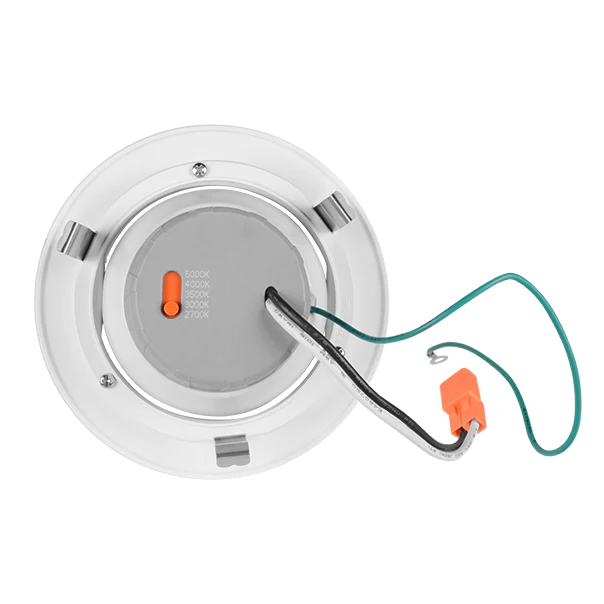

• CCT selection switch on back of housing
• Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
• Operating temperature of -4°F to 104°F (-20°C to 40°C) Mounting and installation
• Compatible with most 4” or 5” & 6” recessed housings
• Suitable for IC-rated housings
• Quick and easy installation with an IDEAL luminaire connector and friction-fit mounting system
• Ships with Edison base socket string (GU24 socket string available)
Finish
• Matte white
Listings
• cETLus 1598 Classified for damp locations
• CA Title 24 compliant (JA8)
• Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
• RoHS Compliant: Free from harmful and hazardous materials
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
• TM-21 Reported L70(10K) hours = 54,000hrs
• LM-79, LM-80 testing performed in accordance with IESNA standards
• Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emission
