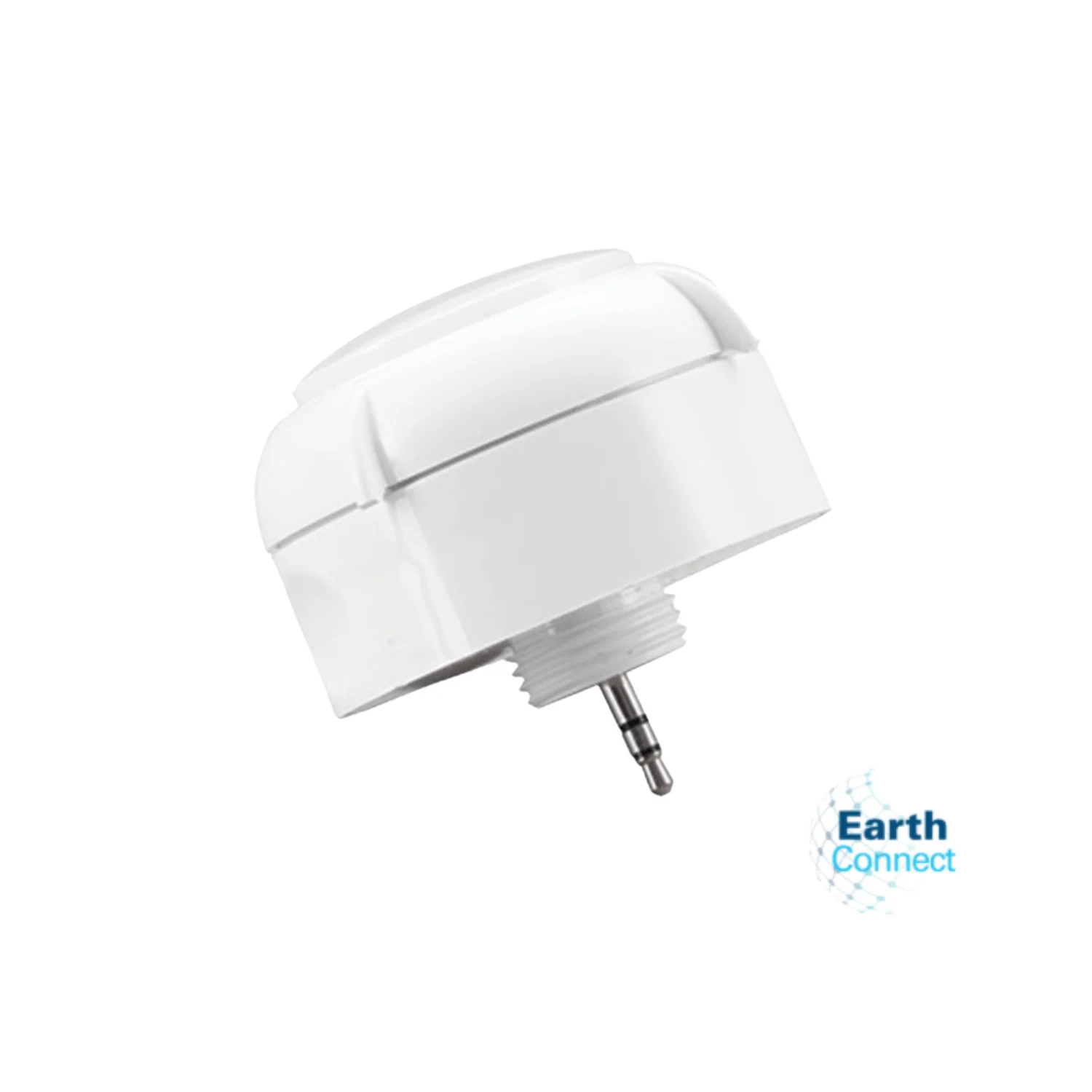

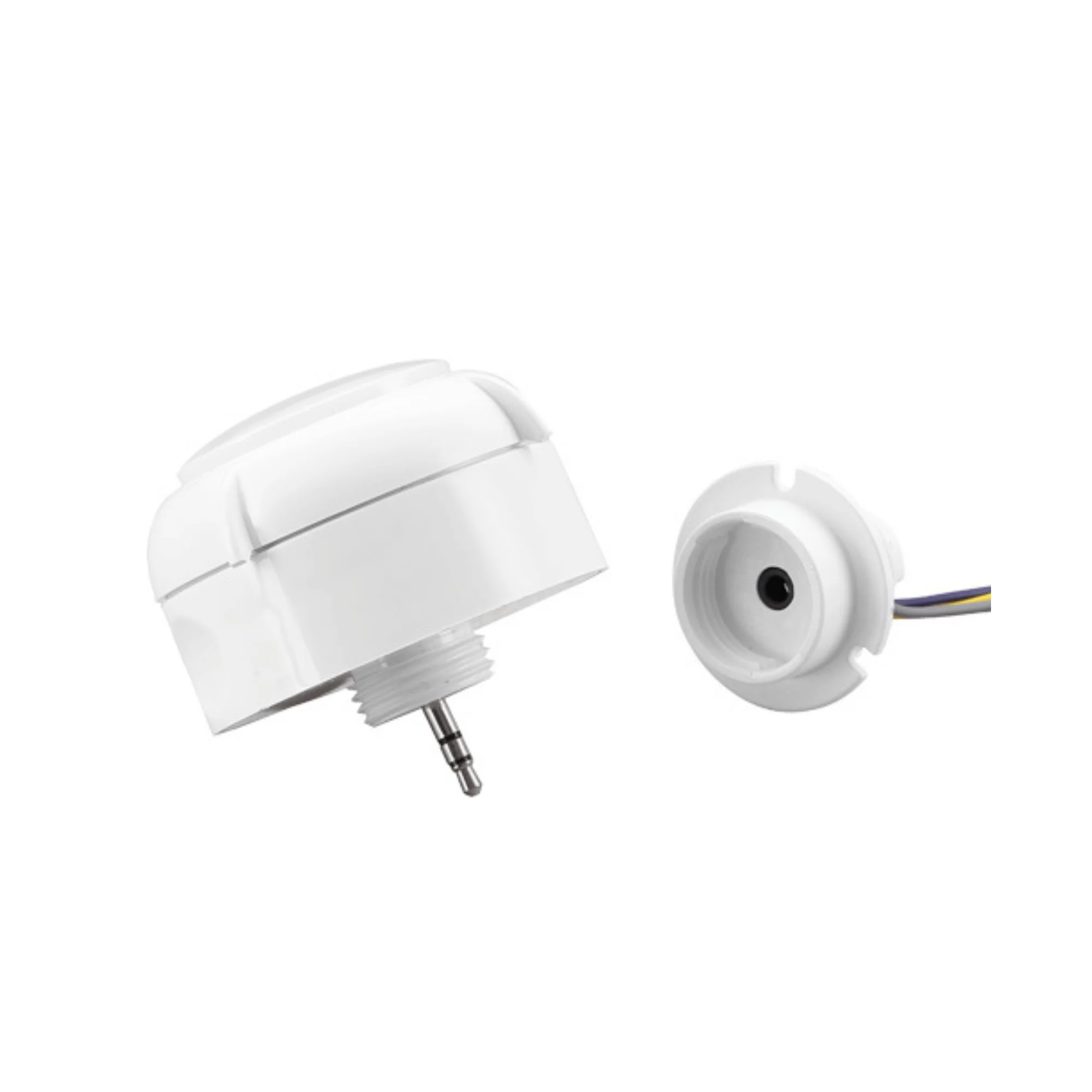

Bluetooth Mesh Plug-in PIR Sensor Controller for LED Highbays

PRODUCT DESCRIPTION
EarthConnect, Bluetooth® networked lighting control system makes it easy for
commercial facilities to maximize energy savings, improve comfort and achieve building code compliance for indoor and outdoor applications. Sensors automatically
read light levels and determine how to best illuminate your space. It’s simple and intuitive. Using the EarthConnect app, nodes can be commissioned without the need for a gateway or Internet access. For use with EarthTronics watt & color selectable UFO Highbay fixtures.

ELECTRICAL:
Input Voltage: 12V DC, 3.5mm
Audio Plug-in
Input Power: 0.6W
Input Current: 50mA Max
Output Voltage: 10VDC
Output Current: 10mA Max
Output Power: 0.1W
Dimming: Class 2, 0-10V
Sinking Current: 10 mA
Bluetooth® Transmit: 200ft Max
Wireless Frequency: 2.4GHz
Wireless Protocol: Bluetooth® 4.2
Sensor Detection Height: 40-80 ft
Mounting Height: 20-40 ft

Operating Temp. Range:
-22°F (-30°C) to 131°F (55°C)
Dimensions:
2.64”Height x 2.4" Width
Lifetime Rating: 50,000hrs
