Juno Dimmable 8 Inch Wafer Downlight, 19 Watt Matte White, Color Selectable

 8" round smooth with 5CCT Switchable White technology provides high-quality
light output and efficiency featuring a switch for easy color temperature adjustment to choose between 2700K, 3000K, 3500K, 4000K, or 5000K - while eliminating the need for recessed housings.

FEATURES:
 Round, smooth lens trim designed to distribute precise even illumination for general-purpose areas

 Canless - no can required; equals easy to install and less labor

 5 selectable color temperatures to choose  with a switch ranging from warm (2700K) to daylight (5000K), allowing customization for endless applications

 Dimmable to 10%

PRODUCT SPECIFICATIONS
Housing

• Polycarbonate injection molded outer frame, with steel back plate. Nonconductive dead-front trim design suitable for a wide range of applications and codes requiring a non-conductive lens
• FT4 3-pin plenum rated cable connector to connect from module to remote driver box

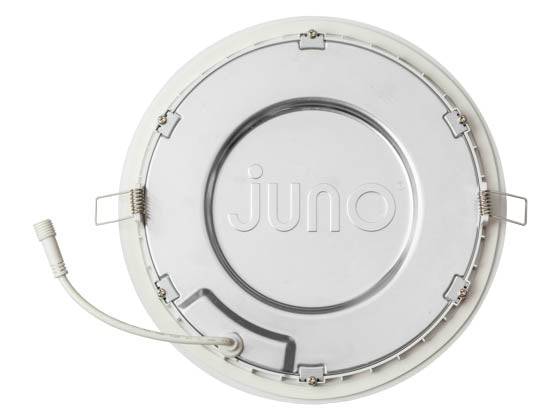

• Steel spring clip for easy installation. 8" cut out template is provided to ensure a correct sized hole is cut into ceiling for proper installation of the trim. Size of hole should not exceed 8 1/4 inches for this product. Can be installed from 3/8" to 1 1/2" ceiling thickness
• Can be removed from below the ceiling for service or replacement.

• Switchable white color temperature from 2700K, 3000K, 3500K, 4000K, 5000K
• 90 CRI minimum
• Color accuracy within 4 step McAdams Ellipse at the end CCT (2700K and 5000K), within 6 step McAdams Ellipse in the middle CCT (3000K, 3500K, and 4000K)
• Dimming 100% to 10% with most standard incandescent dimers (see list of approved dimmers).

Driver

• Connect directly to 120V Class-2 (CAN ICES-005 (B) / NMB-005 (B)) LED driver. 120V 60 Hz constant current driver provides noise free operation
• IC rated driver with convenience of a switch to choose between 5 selectable color temperature options ranging from 2700K (warm white), 3000K, 3500K, 3000K, 4000K, or 5000K (daylight)

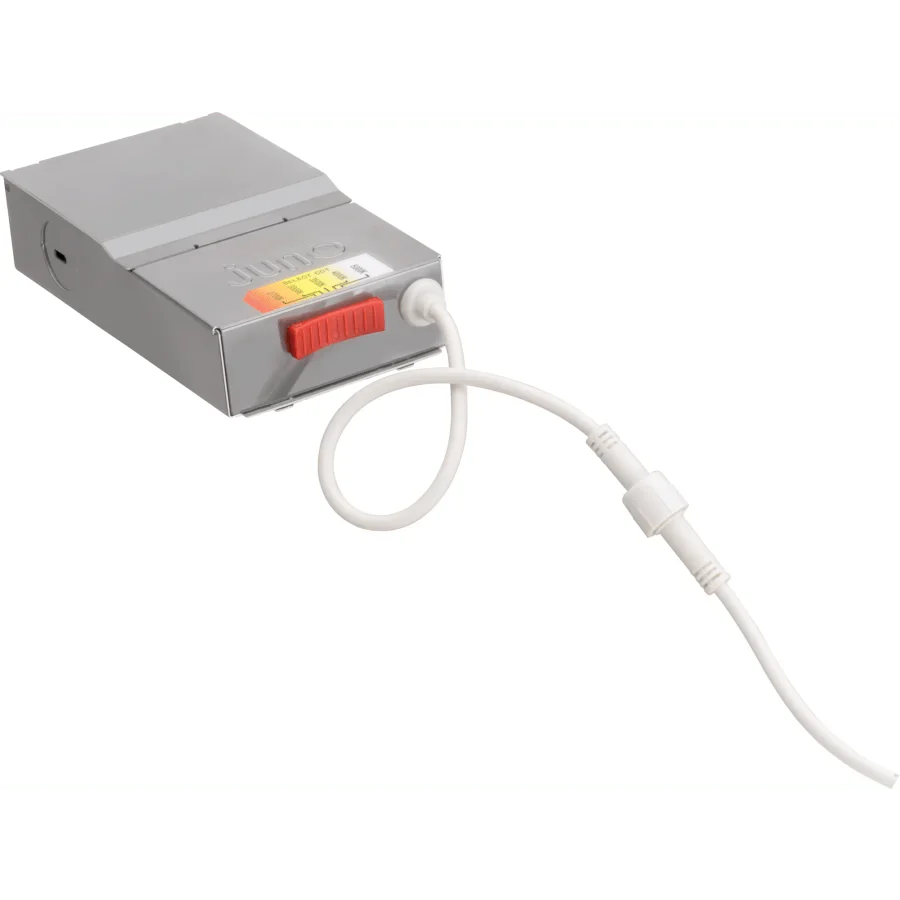

• The isolated driver integrated inside steel remote box with four 7/8" knockouts with slots for pryout. Suitable for pulling wires with the 12 cubic-inch wiring compartment to accommodate up to (6) 14 gauge insulated conductors; making the Wafer LED Downlights much easier to wire in 2in/2out (plus ground) daisy-chain applications and contractor friendly
• 2" plenum space required for installation of the remote driver box
• Suitable for installation in t-grid and drop ceiling applications with universal new construction pan.

Optical System

• Edge-lit LED technology uses light guided plate to distribute light
• Polycarbonate lens provides even illumination throughout the space
• Efficient system that can produce over 1640 lumens while using 19W
• Replaces 100W incandescent.

Life

• Rated for 50,000 hours at 70% lumen maintenance.

Labels

• CSA certified to US and Canadian safety standards
• ENERGY STAR certified product
• Suitable for wet location
• Air-Loc certified in accordance with ASTM E283-2004
• NOM Certified
• Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
• U.S. Patent No. 10,681,784.
